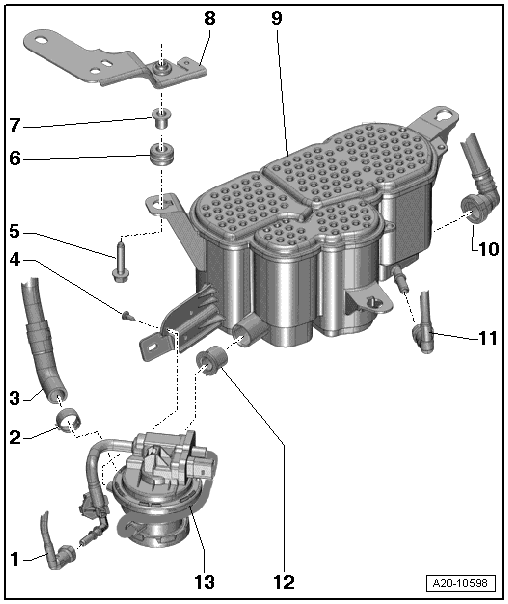

Overview - EVAP System
WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.
- Vacuum Line
- To the engine
- Clamp
- Must be appropriate for the model type .
- Vent Line
- To the left rear air filter under the wheel housing liner
- Bolt
- 4 Nm
- Quantity: 3
- Bolt
- 16 Nm
- Quantity: 3
- Rubber Grommet
- Quantity: 3
- Insert into the EVAP canister
- Bushing
- Quantity: 3
- Insert into the rubber grommet
- Bracket
- For the EVAP canister
- EVAP Canister
- Component location: on the underbody under the rear left floor panel
- Removing and installing, refer to EVAP CANISTER, REMOVING AND INSTALLING, VEHICLES FROM MY 2013 .
- Breather Line
- To the fuel tank
- To disconnect, press release button on the connection piece.
- Breather Line
- To EVAP Canister Purge Regulator Valve 1 -N80-
- To disconnect, press release button on the connection piece.
- Seal
- Insert into the EVAP canister
- Leak Detection Pump -V144-
- From MY 2013 Fuel Tank Pressure Sensor -G400-
- Component location: on the underbody under the rear left floor panel
- Checking in "Guided Functions" using the Vehicle Diagnostic Tester.
- Leak Detection Pump -V144-, Removing and Installing, refer to LEAK DETECTION PUMP, REMOVING AND INSTALLING , Fuel Tank Pressure Sensor - G400-, refer to FUEL TANK PRESSURE SENSOR, REMOVING AND INSTALLING
-- Tighten the nut -2- to 5 Nm.
