OVERVIEW - ELECTRIC COOLANT PUMP, Coolant Recirculation Pump - V50-, NON-HYBRID VEHICLES WITH ENGINE CODE CDZA
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Audi Q5, 2016 Audi Q5, 2015 Audi Q5, 2014 Audi Q5, and 2013 Audi Q5. However, it is still accessible from the selected car via links, so may be relevant.

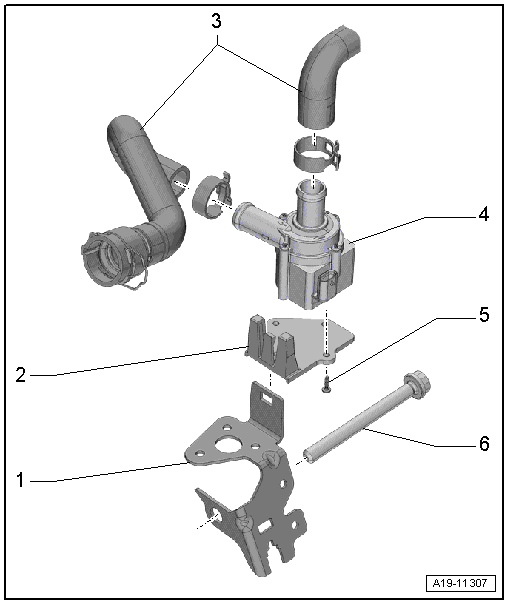

Fig 1: Overview Of Electric Coolant Pump, Coolant Recirculation Pump - V50- (Non-Hybrid Vehicles With Engine Code CDZA)
- Bracket
- Mounting Plate
- Coolant Hoses
- Coolant Recirculation Pump -V50-
- Removing and installing, refer to Coolant Recirculation Pump -V50-, REMOVING AND INSTALLING .
- Screw
- 2.7 Nm
- Screw
- Tightening specification, refer to ENGINE, INSTALLING, NON-HYBRID VEHICLES
