Low Temperature Circuit Coolant Pump -V468-, REMOVING AND INSTALLING, HYBRID VEHICLES: Removing

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Audi Q5, 2016 Audi Q5, 2015 Audi Q5, 2014 Audi Q5, and 2013 Audi Q5. However, it is still accessible from the selected car via links, so may be relevant.

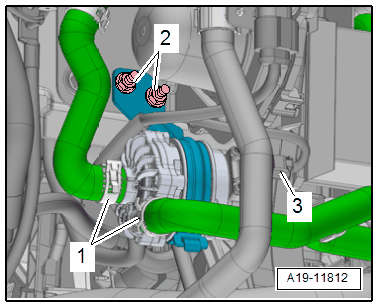

Fig 1: Removing/Installing Low Temperature Circuit Coolant Pump (Hybrid Vehicles)

Courtesy of AUDI OF AMERICA, LLC

-- Remove the right front wheel housing liner, refer to FRONT WHEEL HOUSING LINER, REMOVING AND INSTALLING .

-- Disconnect the connector -3-.

NOTE:

Use a cloth to catch any leaking coolant.

-- Loosen the hose clamps -1-, then clamp off the coolant hose with the Hose Clamps - Up To 25mm 3094 and remove the hose.

-- Take out the nuts -2- and remove the Low Temperature Circuit Coolant Pump -V468-.
