After-Run Coolant Pump -V51-, REMOVING AND INSTALLING, HYBRID VEHICLES: Removing
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Audi Q5, 2016 Audi Q5, 2015 Audi Q5, 2014 Audi Q5, and 2013 Audi Q5. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the engine cover, refer to ENGINE COVER, REMOVING AND INSTALLING .

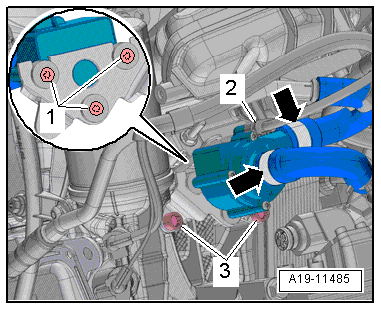

-- Disconnect the connector -2-.
-- Remove the bolts -3-.
-- Loosen the hose clamps -arrows-, then clamp off the coolant hoses with the Hose Clamps - Up To 25mm 3094 and remove the hoses.
-- Remove the bolt -1- and then remove the After-Run Coolant Pump -V51- from the bracket.
