Spray Nozzles, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.

-- Turn off the ignition and remove the key.

-- Remove the air intake grille, refer to Front Bumper .

-- Release the springs -3 and 4- on the spray nozzle upward and, at the same time, pull the spray nozzle -5- out from its mount toward the rear.

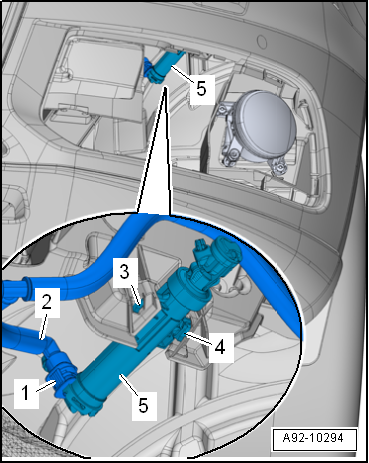

Fig 1: Removing/Installing Spray Nozzle

GWWA92-10294

Courtesy of AUDI OF AMERICA, LLC

-- Clamp off the windshield washer fluid hose -1- with the hose clamps 3094.

Fig 2: Clamping Off Washer Fluid Hose

GWWA92-10204

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Lay a cloth under the point of separation to catch any washer fluid.

-- Remove the clamp -1- to remove the washer fluid hose -2-.

Fig 3: Removing/Installing Spray Nozzle

GWWA92-10294

Courtesy of AUDI OF AMERICA, LLC

NOTE:

If the nozzle cannot be removed as described (depending on the vehicle equipment), then remove the front wheel housing liner or the front bumper cover. Removing the front wheel housing liner, refer to LOWER REAR LID TRIM PANEL, REMOVING AND INSTALLING , or removing the front bumper cover, refer to BUMPER COVER, REMOVING AND INSTALLING .

Fig 1: Identifying Screws On Wheel Housing Liner

GWWA63-10124

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -1- and press the wheel housing liner to the side.

-- If installed, remove the side cooler for the charge air cooling circuit, refer to FRONT RADIATOR CHARGE AIR COOLING CIRCUIT, REMOVING .

-- Clamp off the windshield washer fluid hose -1- with the hose clamps 3094.

Fig 2: Clamping Off Washer Fluid Hose

GWWA92-10204

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Lay a cloth under the point of separation to catch any washer fluid.

-- Release the springs -2 and 3- on the spray nozzle upward and, at the same time, pull the spray nozzle -1- out from its mount toward the rear.

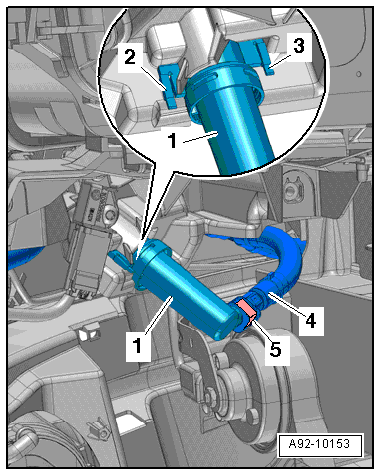

Fig 3: Removing Washer Hose

GWWA92-10153

Courtesy of AUDI OF AMERICA, LLC

-- Remove the clamp -5- and remove the washer fluid hose -4-.
