Overview - Bumper Cover, AUDI Q5
WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
If the vehicle has lane change assistance, the lane change assistance control module -J769- / -J770- must be recalibrated. Refer to OVERVIEW - LANE CHANGE ASSISTANCE .

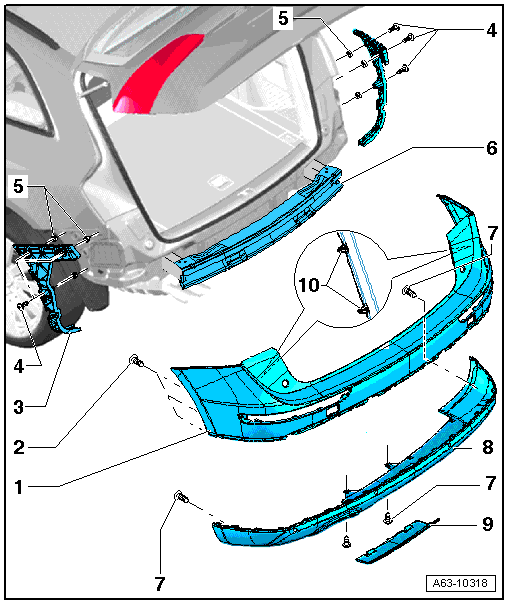

- Rear Bumper Cover
- Removing and installing. Refer to BUMPER COVER, REMOVING AND INSTALLING .
- Bolt
- 1.5 Nm
- Guide Piece
- Removing and installing. Refer to BUMPER GUIDE PIECES, REMOVING AND INSTALLING .
- Bolt
- 1.5 Nm
- Clip
- Impact Member
- Bolt
- 1.5 Nm
- Spoiler
- Equipment levels
- Removing and installing. Refer to ATTACHMENTS, REMOVING AND INSTALLING .
- Trim
- Clips
- Unclip on both sides before removing the bumper cover to the rear.
- There are different numbers of clips.
