Overview - Bumper Cover, AUDI Q5 S Line And AUDI Sq5

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

If the vehicle has lane change assistance, the lane change assistance control module -J769- / -J770- must be recalibrated. Refer to OVERVIEW - LANE CHANGE ASSISTANCE .

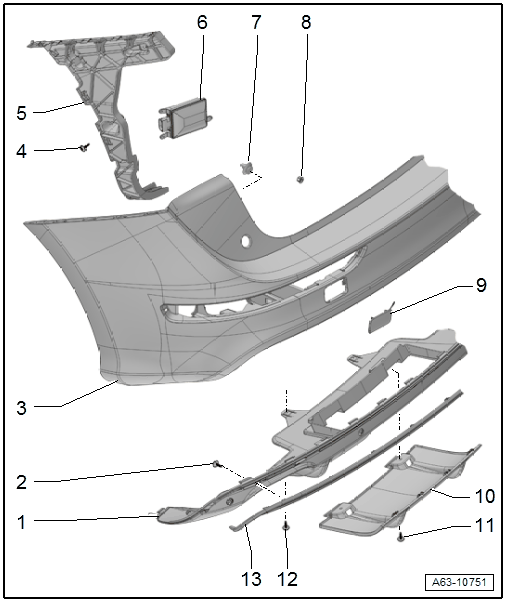

Fig 1: Overview Of Bumper Cover (AUDI Q5 S Line And AUDI SQ5)

Courtesy of AUDI OF AMERICA, LLC

Spoiler
- Different versions.
- Removing and installing. Refer to ATTACHMENTS, REMOVING AND INSTALLING .
Bolt
- Quantity: 10
- 2.2 Nm
Rear Bumper Cover
- Removing and installing. Refer to BUMPER COVER, REMOVING AND INSTALLING .
Bolt
- Tightening sequence, refer to -item 4- Bolt (See Figure).
Guide Piece
- Removing and installing. Refer to BUMPER GUIDE PIECES, REMOVING AND INSTALLING .
Lane Change Assistance Control Module
- Equipment levels
- Overview. Refer to OVERVIEW - LANE CHANGE ASSISTANCE .
Clip
Nut
- 4 Nm
- Quantity: 4
Cover
- For the towing eye.
Trim
Bolt
- 1.5 Nm
- Quantity: 2
Bolt
- 1.5 Nm
- Quantity: 2
Trim Strip
- For the bumper cover spoiler
- Removing and installing. Refer to ATTACHMENTS, REMOVING AND INSTALLING .
