Overview - Cylinder Block, Belt Pulley Side, Hybrid Vehicles
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Audi Q5, 2016 Audi Q5, 2015 Audi Q5, 2014 Audi Q5, and 2013 Audi Q5. However, it is still accessible from the selected car via links, so may be relevant.

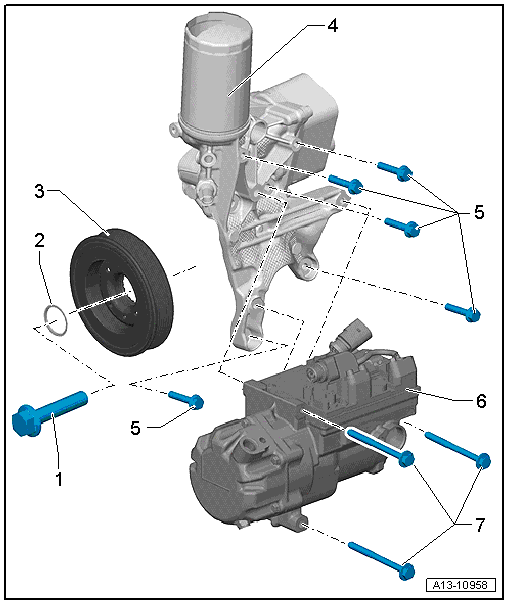

- Bolt
- 150 Nm + 90° turn
- Replacing
- Coat the O-ring with oil.
- Use the Counterhold - Vibration Damper T10475 to loosen and tighten
- O-Ring
- Not a replacement part; supplied with the bolt
- Vibration Damper
- With ribbed belt pulley
- Removing and installing, refer to VIBRATION DAMPER, REMOVING AND INSTALLING HYBRID VEHICLES .
- Auxiliary Components Bracket
- With oil filter and engine oil cooler
- Auxiliary components bracket, removing and installing, refer to AUXILIARY COMPONENTS BRACKET, REMOVING AND INSTALLING, HYBRID VEHICLES .
- Removing and installing the engine oil cooler, refer to ENGINE OIL COOLER, REMOVING AND INSTALLING .
- Auxiliary Components Bracket Bolts
- Replacing
- Tightening sequence, refer to Fig 2
- Electrical A/C Compressor -V470-
- Removing and Installing, refer to A/C COMPRESSOR, REMOVING AND INSTALLING ON BRACKET, ELECTRICALLY-DRIVEN A/C COMPRESSOR , or A/C COMPRESSOR, REMOVING AND INSTALLING ON BRACKET, MECHANICALLY-DRIVEN A/C COMPRESSOR for hybrid .
- Electrical A/C Compressor -V470- bolts
- There are different bolt lengths.
- Tightening specifications, refer to INSTALLING for electrically-driven A/C compressor INSTALLING for mechanically-driven A/C compressor .
-- Mount the accessory assembly bracket and then mount the bolts -4-.
-- Tighten bolts in three stages in -1 through 5- sequence as follows:
| -- Tighten bolts by hand.-- Tighten the bolts to 20 Nm.-- Tighten the bolts an additional 90°. |
