Balance Shaft, Removing And Installing, Exhaust Side: Removing

-- Removing the radiator with fan shroud:

• Non-hybrid vehicles, refer to RADIATOR, REMOVING AND INSTALLING NON-HYBRID VEHICLES .
• Hybrid vehicles, refer to RADIATOR, REMOVING AND INSTALLING, HYBRID VEHICLES .

-- Remove the upper timing chain cover, refer to UPPER TIMING CHAIN COVER, REMOVING AND INSTALLING .

-- Remove the lower timing chain cover, refer to LOWER TIMING CHAIN COVER, REPLACING .

-- Remove the camshaft timing chain, refer to CAMSHAFT TIMING CHAIN, REMOVING AND INSTALLING .

-- Remove the balance shaft drive chain, refer to BALANCE SHAFT DRIVE CHAIN, REMOVING AND INSTALLING .

-- Remove the bolt -1- on the exhaust camshaft balance shaft.

Fig 1: Identifying Intake Camshaft Balance Shaft

Courtesy of AUDI OF AMERICA, LLC

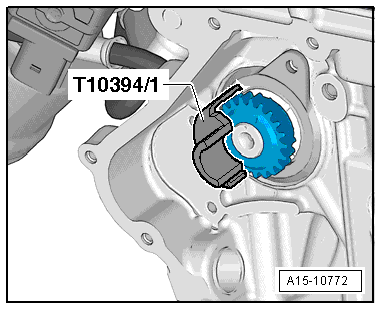

-- Insert the Puller Jaw T10394/1 from the Puller - Balancer Shaft T10394.

Fig 2: Identifying Half Shell - T10394/1-

Courtesy of AUDI OF AMERICA, LLC

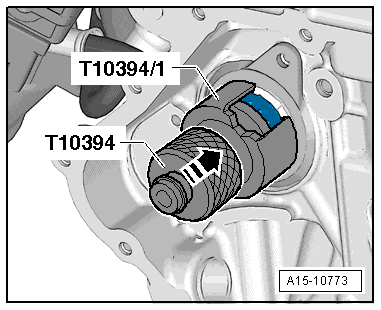

-- Insert the Puller - Balancer Shaft T10394 and push the sliding sleeve in direction of -arrow-.

Fig 3: Identifying Installation Of Puller Pieces - T10394- And - T10394/1-

Courtesy of AUDI OF AMERICA, LLC

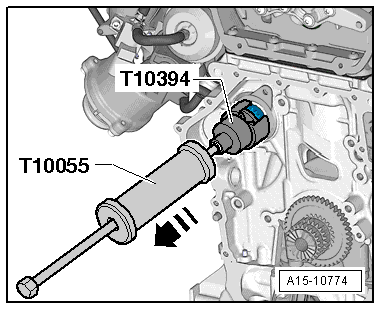

-- Install the Puller - Unit Injector T10055 into the Puller - Balancer Shaft T10394 and remove the balance shaft.

Fig 4: Identifying Installation And Operation Of Puller - T10055-

Courtesy of AUDI OF AMERICA, LLC
