Tail Lamp, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.

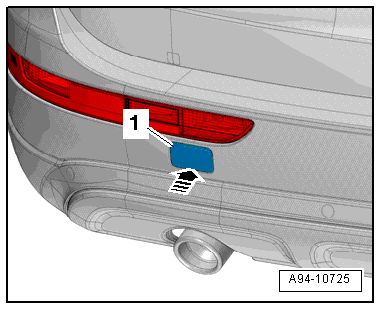

Fig 1: Removing Bumper Cover Tail Lamp Cap

Courtesy of AUDI OF AMERICA, LLC

-- Turn off the ignition and remove the key.

-- Turn the headlamp switch to "0".

NOTE:

To protect the paint in the area around the cap, tape it off with a soft cloth.

-- Push the cap -1- on the outer side -arrow- toward the inside.

-- Remove the cap and let it hang.

-- Remove the bolt -1-.

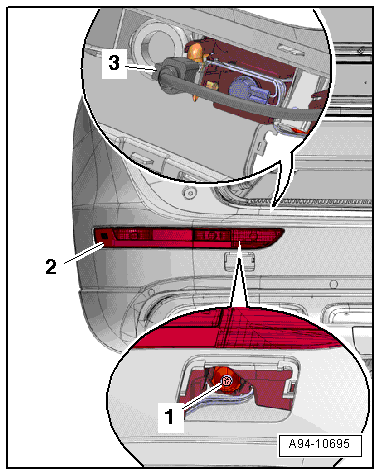

Fig 2: Identifying Tail Lamp Components

Courtesy of AUDI OF AMERICA, LLC

-- Remove the tail lamp -2- from the bumper cover.

-- Disconnect the connector -3- on the central connector.
