Rear Lid Tail Lamp, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Removing Tail Lamp Cover

Courtesy of AUDI OF AMERICA, LLC

-- Turn off the ignition and remove the key.

-- Turn the headlamp switch to "0".

-- Remove the outer cap on the opening -2- in direction of -arrow-.

NOTE:

Ignore item -1-.

-- Insert a screwdriver -2- into the opening and pry out the cap -1- from the inside in direction of -arrow-.

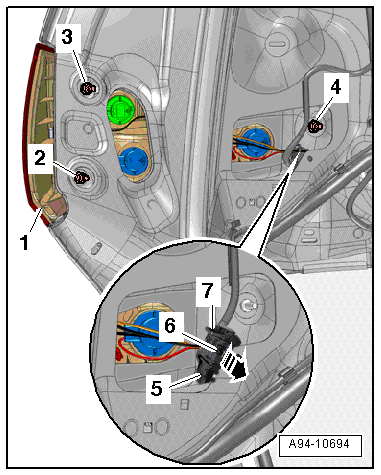

Fig 2: Removing Connector Mount

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector mount -5- on the bracket by pressing the retainer -6- in direction of -arrow- and remove the mount.

Fig 3: Removing Tail Lamps

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -7-.

-- Remove the nut -2 through 4- and remove the tail lamps -1-.
