Outer Bulb Holder, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.

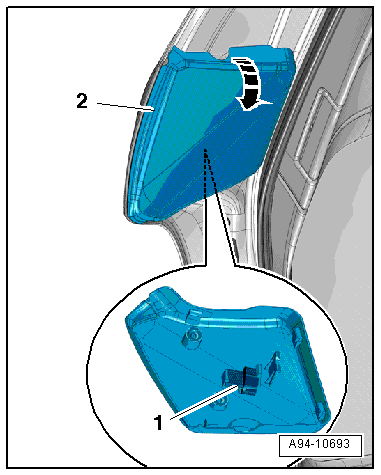

Fig 1: Removing Tail Lamp Cover

Courtesy of AUDI OF AMERICA, LLC

-- Turn off the ignition and remove the key.

-- Remove the outer cap on the opening -2- in direction of -arrow-.

-- Remove the key -1- from the mount on the cap and position it on the bulb holder.

-- Turn the bulb holder -1- and -2- with the key -3- counter-clockwise.

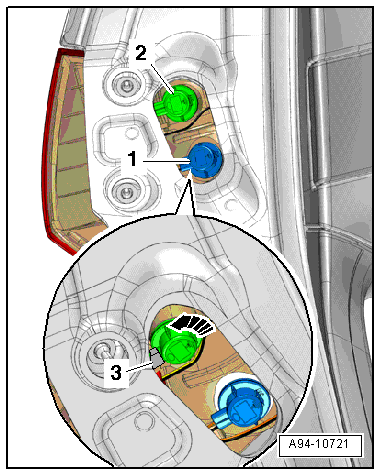

Fig 2: Removing Outer Bulb Holder

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bulb holder from the tail lamp and remove the bulbs.
