Rear Parking Aid Sensor, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.

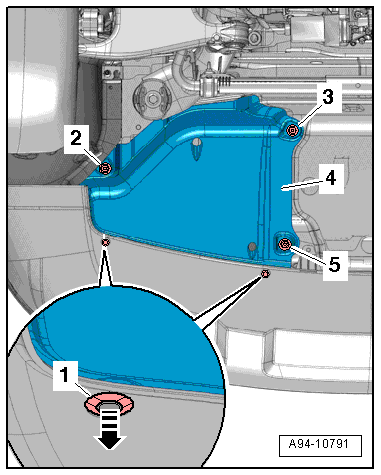

Fig 1: Removing Rear Parking Aid Sensor

Courtesy of AUDI OF AMERICA, LLC

-- Turn off the ignition and remove the key.

Outer Sensor - Right Side Of Vehicle, Vehicles With 4-Cylinder Engine:

-- Remove the pin -arrow- and expanding clips -1-.

-- Remove the nuts -2, 3 and 5-.

-- Remove the rear aerodynamic underbody trim panel -4-.

All Vehicles:

Fig 2: Identifying Electrical Harness Sensor Connector

Courtesy of AUDI OF AMERICA, LLC

-- Reach behind the bumper cover from below.

-- Press both retaining tabs to the side -arrows- and press the sensor -2- through from the outside towards the inside.

-- Disconnect the connector -1- from the sensor.

Inner Sensor:

Fig 3: Identifying Electrical Harness Sensor Connector

Courtesy of AUDI OF AMERICA, LLC

-- Vehicles without a trailer hitch, Audi Q5: Remove the rear bumper cover, refer to REAR BUMPER COVER, REMOVING AND INSTALLING .

-- Vehicles with a trailer hitch: Remove the cover for the trailer hitch, refer to Owner's Manual.

-- Reach behind the bumper cover from below.

-- Press both retaining tabs to the side -arrows- and press the sensor -2- through from the outside towards the inside.

-- Disconnect the connector -1- from the sensor.
