Front Parking Aid Warning Buzzer -H22-, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition and remove the key.
-- Remove The Driver Side Instrument Panel cover, refer to DRIVER SIDE INSTRUMENT PANEL COVER, REMOVING AND INSTALLING .

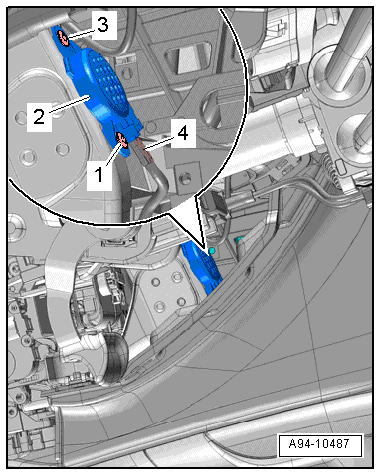

-- Remove the bolts -1- and -3-.
-- Remove the warning buzzer -2- with the expanding clips.
-- Disconnect the connector -4-.
