Overview - Headlamp, Hid Headlamps From My 2013

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.

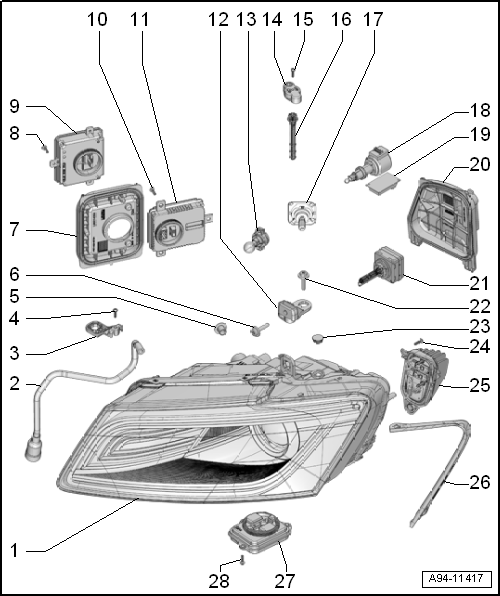

Fig 1: Exploded View Of Headlamp, HID Headlamps (From MY 2013)

Courtesy of AUDI OF AMERICA, LLC

Headlamp Housing
- Versions with a Left and Right Front Side Marker Lamp Bulb -M33- / -M34-. Cannot be replaced separately
- Removing and installing, refer to HEADLAMP HOUSING, REMOVING AND INSTALLING, VEHICLES FROM MY 2013
Ventilation Hose
- For the headlamp housing
Headlamp Housing Inner Bracket
- Removing and installing, refer to HEADLAMP HOUSING INNER BRACKET, REMOVING AND INSTALLING
Bolt
- 6 Nm
Cap
- For headlamp housing ventilation
Bolt
- 4.5 Nm
Housing Cover
Screw
- 1.5 Nm
- Quantity: 3
Daytime Running Lamp and Position Lamp Control Module
- Left Daytime Running Lamp and Position Lamp Control Module -J860-
- Right Daytime Running Lamp and Position Lamp Control Module -J861-
- Removing and installing, refer to LEFT/RIGHT DAYTIME RUNNING LAMP AND POSITION LAMP CONTROL MODULE -J860- / -J861-, REMOVING AND INSTALLING
Screw
- 1.5 Nm
- Quantity: 3
HID Lamp Control Module
- Left HID Headlamp Control Module -J343-
- Right HID Headlamp Control Module -J344-
- Removing and installing, refer to LEFT/RIGHT HID HEADLAMP CONTROL MODULE -J343- /J344, REMOVING AND INSTALLING, FROM MY 2013
Headlamp Housing Upper Bracket
- Removing and installing, refer to HEADLAMP HOUSING UPPER BRACKET, REMOVING AND INSTALLING
Front Turn Signal Bulb
- Left Front Turn Signal Bulb -M5-
- Right Front Turn Signal Bulb -M7-
- 12 V, 24 W (F024MD)
- Bulb, replacing, refer to LEFT/RIGHT FRONT TURN SIGNAL BULB -M5- / -M7-, REMOVING AND INSTALLING, HID HEADLAMPS FROM MY 2013 .
Cover with Adjustment Wheel
Bolt
- 1.5 Nm
Actuating Shaft
- To adjust height
Stationary Cornering Lamp Bulb
- Left Stationary Cornering Lamp -M51-
- Right Stationary Cornering Lamp -M52-
- 12 V, 55 W (H7)
- Bulb, replacing, refer to LEFT/RIGHT STATIONARY CORNERING LAMP -M51- / -M52-, REMOVING AND INSTALLING .
Headlamp Beam Adjustment Motor
- Left Headlamp Beam Adjustment Motor -V48-
- Right Headlamp Beam Adjustment Motor -V49-
- Removing and installing, refer to LEFT/RIGHT HEADLAMP BEAM ADJUSTMENT MOTOR -V48- / -V49-, REMOVING AND INSTALLING, HID HEADLAMPS FROM MY 2013
Printed Circuit Board
- Removing and installing, refer to PRINTED CIRCUIT BOARD, REMOVING AND INSTALLING
Housing Cover
HID Headlamp Bulb
- With integrated ignition coil
- Left HID Headlamp Bulb -L13-
- Right HID Headlamp Bulb -L14-
- 42 V, 35 W (D3S)
- Bulb, replacing, refer to LEFT/RIGHT HID HEADLAMP BULB -L13- / -L14-, REMOVING AND INSTALLING, HID HEADLAMPS FROM MY 2013 .
Screw
- 4.5 Nm
- Quantity: 3
Cap
- For side adjustment screw in USA vehicles
Bolt
- 1.5 Nm
- Quantity: 3
Daytime Running Lamp and Position Lamp LED Module
- Left Daytime Running Lamp and Position Lamp LED Module -L176-
- Right Daytime Running Lamp and Position Lamp LED Module -L177-
- Removing and installing, refer to LEFT/RIGHT DAYTIME RUNNING LAMP AND POSITION LAMP LED MODULE -L176- / -L177-, REMOVING AND INSTALLING, HID HEADLAMPS FROM MY 2013
Sealing Frame
- Removing and installing, refer to SEALING FRAME, REMOVING AND INSTALLING
Headlamp Power Output Stages
- Only for vehicles with cornering lamps
- Left Headlamp Power Output Stage -J667-
- Right Headlamp Power Output Stage -J668-
- Removing and installing, refer to LEFT/RIGHT HEADLAMP POWER OUTPUT STAGE -J667- / -J668-, REMOVING AND INSTALLING, FROM MY 2013
Screw
- 1.5 Nm
- Quantity: 3
