Overview - Headlamp, Halogen Headlamps, From My 2013

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.

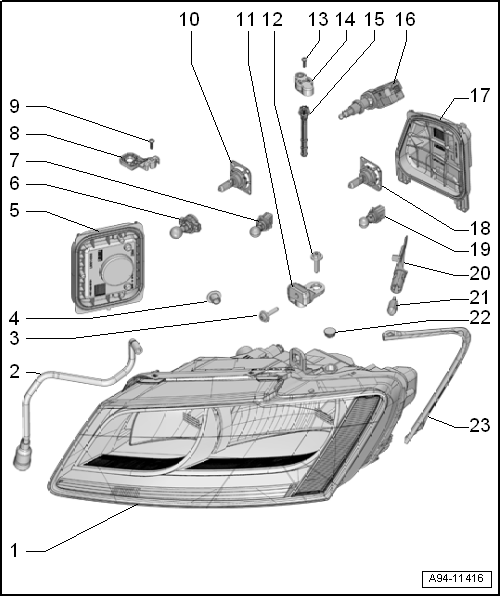

Fig 1: Exploded View Of Headlamp, Halogen Headlamps (From MY 2013)
GWWA94-11416Courtesy of AUDI OF AMERICA, LLC
  1. Headlamp Housing
  2. Ventilation Hose
    • For the headlamp housing
  3. Screw
    • 4.5 Nm
  4. Cap
    • For headlamp housing ventilation
  5. Housing Cover
  6. Front Turn Signal Bulb
  7. Parking Lamp Bulb/Daytime Running Lamp
  8. Headlamp Housing Inner Bracket
  9. Bolt
    • 6 Nm
  10. High Beam Headlamp Bulb
  11. Headlamp Housing Upper Bracket
  12. Screw
    • 4.5 Nm
  13. Screw
    • 1.5 Nm
  14. Cover with Adjustment Wheel
  15. Actuating Shaft
    • To adjust height
  16. Headlamp Beam Adjustment Motor
  17. Housing Cover
  18. Low Beam Headlamp Bulb
  19. Daytime Running Lamp Bulb
  20. Bulb Socket
    • For the front side marker lamp bulb
  21. Front Side Marker Lamp Bulb
  22. Cap
    • For side adjustment screw
  23. Sealing Frame
