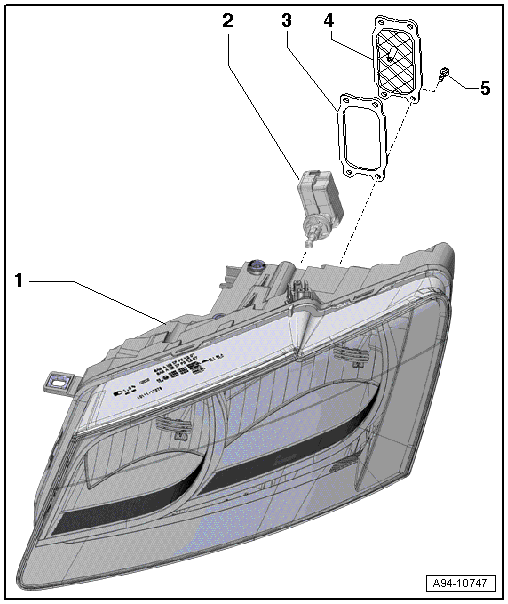

Overview - Headlamp, Halogen Headlamp Repair Kit Through My 2012
WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.
- Headlamp Housing
- Removing and installing, refer to HEADLAMP HOUSING, REMOVING AND INSTALLING, VEHICLES THROUGH MY 2012
- Headlamp Beam Adjustment Motor
- Left Headlamp Beam Adjustment Motor -V48-
- Right Headlamp Beam Adjustment Motor -V49-
- Removing and installing, refer to LEFT/RIGHT HEADLAMP BEAM ADJUSTMENT MOTOR -V48- / -V49-, REMOVING AND INSTALLING, HALOGEN HEADLAMPS THROUGH MY 2012
- Seal
- Not available separately as a replacement part
- Headlamp Beam Adjustment Motor Housing Cover
- The headlamp housing must be cut open to replace the adjustment motor
- A housing cover can be ordered to seal the assembly opening, refer to the parts information.
- Removing and installing, refer to LEFT/RIGHT HEADLAMP BEAM ADJUSTMENT MOTOR -V48- / -V49-, REMOVING AND INSTALLING, HALOGEN HEADLAMPS THROUGH MY 2012
- Screw
- 2 Nm
- From the repair kit for the headlamp beam adjustment motor cover
