Left/Right Position Lamp Bulb -M1- / -M3-, Removing And Installing, Halogen Headlamps Through My 2012: Removing

Fig 1: Removing Expanding Clips At Lock Carrier Cover

Courtesy of AUDI OF AMERICA, LLC

-- Turn off the ignition and remove the key.

-- Turn the headlamp switch to "0".

-- To remove the expanding clips -arrows-, carefully push the pin -1- to dimension -x- until it audibly engages into the expanding clip -arrow A-.

• Dimension -x- = 5 mm.

-- Remove the unlocked expanding clip -2- and the pin.

-- Lift the lock carrier cover -3- and engage it on the radiator grille.

-- On the right: remove the air filter housing, refer to AIR FILTER HOUSING, REMOVING AND INSTALLING .

-- Open the clip -2- -arrow A-.

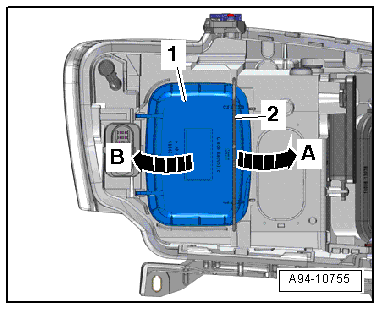

Fig 2: Removing Headlamp Housing Cover

Courtesy of AUDI OF AMERICA, LLC

-- Move the housing cover -1- to the side -arrow B- and remove it.

-- Remove bolts -2- and -4-.

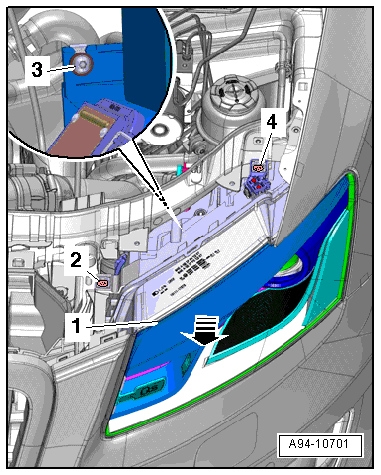

Fig 3: Identifying Headlamp Housing Components

Courtesy of AUDI OF AMERICA, LLC

-- Loosen the bolt -3- three turns.

-- Push the headlamp housing -1- forward all the way in direction of -arrow-.

-- Turn the bulb -1- counterclockwise -arrow- and remove it from the housing.

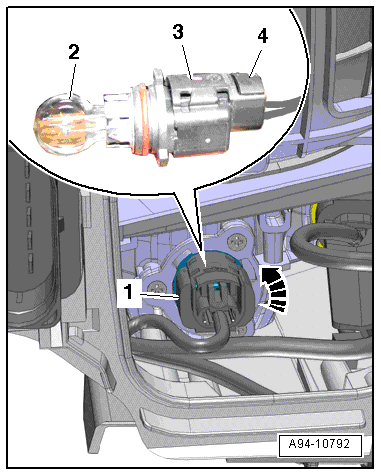

Fig 4: Removing Side Marker Bulb

Courtesy of AUDI OF AMERICA, LLC

-- Release the spring -4- and disconnect the connector -3- on the bulb -2-.
