Left/Right Position Lamp Bulb -M1- / -M3-, Removing And Installing, Halogen Headlamps From My 2013: Removing

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Headlight Access Cover (Halogen Headlamps From MY 2013)

Courtesy of AUDI OF AMERICA, LLC

-- On the right: remove the air filter housing, refer to AIR FILTER HOUSING, REMOVING AND INSTALLING .

-- Open the retainers -1 and 3-.

-- Remove the housing cover -2-.

-- Turn the bulb socket -1- on the left headlamp counterclockwise -arrow-. Likewise, turn the bulb socket on the right headlamp clockwise.

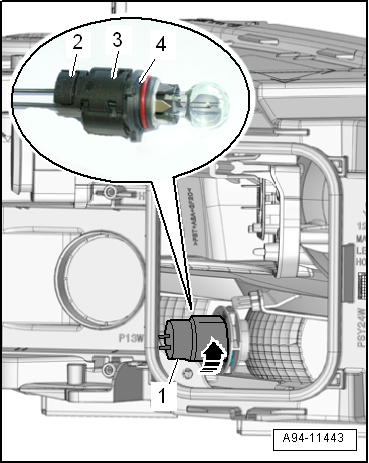

Fig 2: Removing Position Lamp Bulb

Courtesy of AUDI OF AMERICA, LLC

-- Remove socket from headlamp housing.

-- Press down on the release -2- and remove the connector -3- from the bulb socket -4- with the bulb.
