Left/Right High Beam Headlamp Bulb -M30- / -M32-, Removing And Installing, Halogen Headlamps Through My 2012: Removing

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.

-- Turn off the ignition and remove the key.

-- Turn the headlamp switch to "0".

-- On the right: remove the air filter housing, refer to AIR FILTER HOUSING, REMOVING AND INSTALLING .

-- Open the retainer -2- -arrow-.

Fig 1: Removing Housing Cover

Courtesy of AUDI OF AMERICA, LLC

-- Move the housing cover -1- to the side and remove it.

-- Remove the bulb -2- from the spring clips -arrows-.

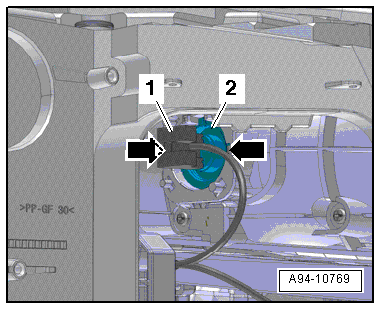

Fig 2: Identifying High Beam Headlamp Bulb Components

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -1- from the bulb.
