Left/Right Hid Headlamp Bulb -L13- / -L14-, Removing And Installing, Hid Headlamps Through My 2012: Removing

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Removing Expanding Clips At Lock Carrier Cover

Courtesy of AUDI OF AMERICA, LLC

-- Turn the light switch to position "0".

-- Turn off the ignition and all electrical consumers and remove the ignition key.

-- Do not touch the flasher.

-- To remove the expanding clips -arrows-, carefully push the pin -1- to dimension -x- until it audibly engages into the expanding clip -arrow A-.

Dimension -x- = 5 mm.

-- Remove the unlocked expanding clip -2- and the pin.

-- Lift the lock carrier cover -3- and engage it on the radiator grille.

-- On the right: remove the air filter housing, refer to AIR FILTER HOUSING, REMOVING AND INSTALLING .

-- Open the clip -2- -arrow A-.

Fig 2: Removing Headlamp Housing Cover

Courtesy of AUDI OF AMERICA, LLC

-- Move the housing cover -1- to the side -arrow B- and remove it.

-- Remove bolts -2- and -4-.

Fig 3: Identifying Headlamp Housing Components

Courtesy of AUDI OF AMERICA, LLC

-- Loosen the bolt -3- three turns.

-- Push the headlamp housing -1- forward all the way in direction of -arrow-.

-- Disconnect the connector -1-.

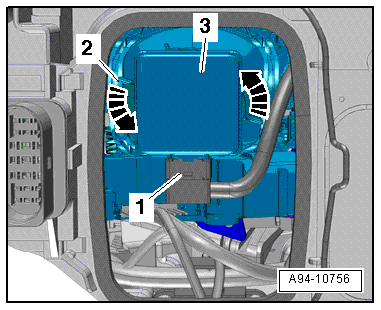

Fig 4: Removing HID Lamp

Courtesy of AUDI OF AMERICA, LLC

-- Turn the locking ring -2- in the direction of the -arrow- and remove the HID bulb -3- from the housing.
