Left/Right Front Turn Signal Bulb -M5- / -M7-, Removing And Installing, Hid Headlamp Through My 2012: Removing

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Headlight Access Cover (HID Headlamp Through MY 2012)

Courtesy of AUDI OF AMERICA, LLC

-- Remove the headlamp housing, refer to HEADLAMP HOUSING, REMOVING AND INSTALLING, VEHICLES THROUGH MY 2012 .

-- Open the retainer -2- -arrow-.

-- Move the housing cover -1- to the side and remove it.

-- Vehicles with cornering lamp: disconnect the connectors -1, 2 and 3- on the headlamp power output stages -4-.

Fig 2: Identifying Headlamp Power Output Stages Connectors

Courtesy of AUDI OF AMERICA, LLC

-- Turn the bulb -1- counterclockwise -arrow- and remove it from the housing.

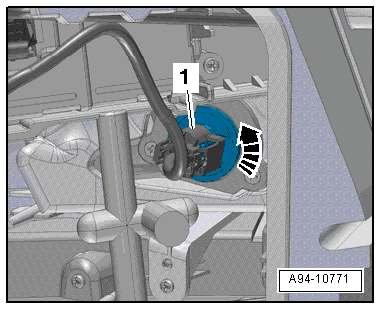

Fig 3: Removing Front Turn Signal Lamp Bulb

Courtesy of AUDI OF AMERICA, LLC

-- Unlock the retaining spring and disconnect the bulb connector.
