Left/Right Front Turn Signal Bulb -M5- / -M7-, Removing And Installing, Halogen Headlamps Through My 2012: Removing

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.

-- Turn off the ignition and remove the key.

-- Turn the headlamp switch to "0".

-- On the right: remove the air filter housing, refer to AIR FILTER HOUSING, REMOVING AND INSTALLING .

-- Open the retainer -2- -arrow-.

Fig 1: Headlight Access Cover (Halogen Headlamps Through MY 2012)

Courtesy of AUDI OF AMERICA, LLC

-- Move the housing cover -1- to the side and remove it.

-- Turn the bulb -1- counterclockwise -arrow- and remove it from the housing.

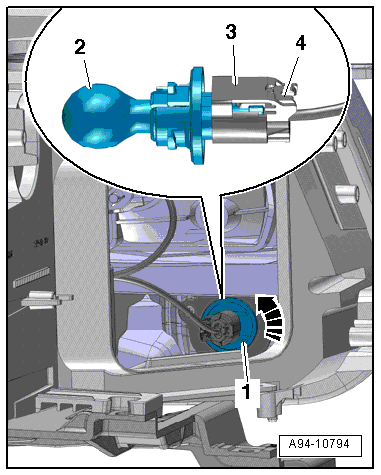

Fig 2: Removing Turn Signal Bulb

Courtesy of AUDI OF AMERICA, LLC

-- Release the spring -4- and disconnect the connector -3- on the bulb -2-.
