Left/Right Front Turn Signal Bulb -M5- / -M7-, Removing And Installing, Halogen Headlamps From My 2013: Removing

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.

-- On the right: remove the air filter housing, refer to AIR FILTER HOUSING, REMOVING AND INSTALLING .

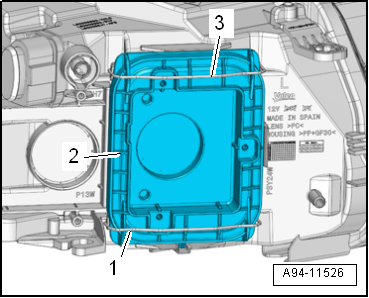

Fig 1: Headlight Access Cover (Halogen Headlamps From MY 2013)

Courtesy of AUDI OF AMERICA, LLC

-- Open the retainers -1 and 3-.

-- Remove the housing cover -2-.

-- Disengage the bulb -1- counter-clockwise -arrow-.

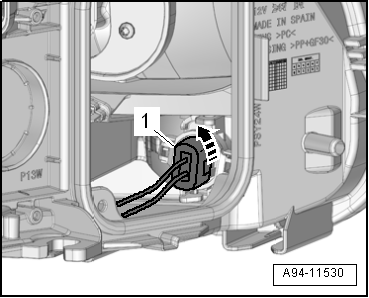

Fig 2: Removing Front Turn Signal Bulb

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bulb from the housing.

-- Press the release -arrow- and remove the connector -2- from the socket -1- with the bulb.

Fig 3: Identifying Bulb & Connector

Courtesy of AUDI OF AMERICA, LLC
