Left/Right Daytime Running Lamp Bulb -L174- / -L175-, Removing And Installing, Halogen Headlamps From My 2013: Removing

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.

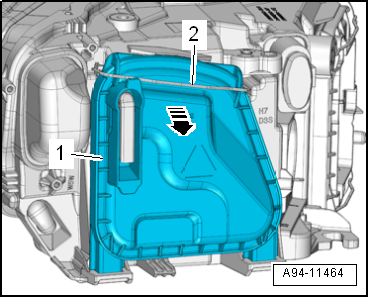

Fig 1: Headlight Access Cover (Halogen Headlamps From MY 2013)

Courtesy of AUDI OF AMERICA, LLC

-- Turn off the ignition and remove the key.

-- Turn the headlamp switch to "0".

-- Open the retainer -2-.

-- Pivot the housing cover -1- to the side -arrow-.

-- To remove the expanding clips -arrows-, carefully push the pin -1- to dimension -x- until it audibly engages into the expanding clip -arrow A-.

Fig 2: Removing Expanding Clips At Lock Carrier Cover

Courtesy of AUDI OF AMERICA, LLC

Dimension -x- = 5 mm.

-- Remove the unlocked expanding clip -2- and the pin.

-- Lift the lock carrier cover -3- and engage it on the radiator grille.

-- On the right: remove the air filter housing, refer to AIR FILTER HOUSING, REMOVING AND INSTALLING .

-- Remove bolts -2- and -4-.

Fig 3: Pushing Headlamp Housing Forward

Courtesy of AUDI OF AMERICA, LLC

-- Loosen the bolt -3- three turns.

-- Push the headlamp housing -1- forward all the way in direction of -arrow-.

-- Remove the housing cover.

-- Turn the socket -1- counterclockwise -arrow- and remove it from the housing.

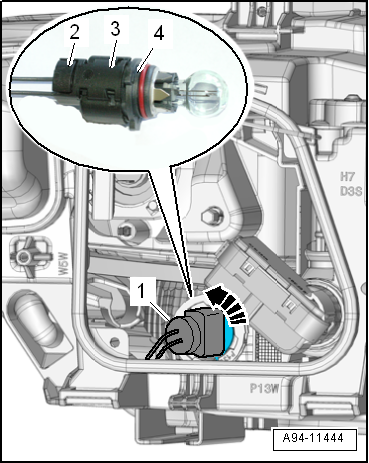

Fig 4: Removing Daytime Running Lamp Bulb

Courtesy of AUDI OF AMERICA, LLC

-- Press down on the release -2- and remove the connector -3- from the bulb socket -4- with the bulb.
