Headlamp Housing, Removing And Installing, Vehicles From My 2013: Removing

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.

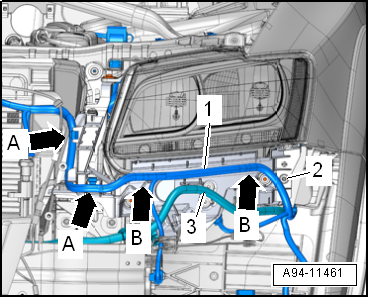

Fig 1: Removing Headlamp Housing - Part 1 (Vehicles From MY 2013)

Courtesy of AUDI OF AMERICA, LLC

-- Turn the light switch to position "0".

-- Turn off the ignition and all electrical consumers and remove the ignition key.

-- Do not touch the flasher.

-- Remove the front bumper cover, refer to FRONT BUMPER COVER, REMOVING AND INSTALLING / OVERVIEW - FRONT BUMPER COVER .

-- Free up the wiring harness -1- on the bracket by loosening the spiral clips -arrows B- and cutting the cable ties -arrows A-.

-- If equipped, remove the headlamp washer fluid line -3- from the retaining clips and remove the headlamp washer spray nozzle, refer to SPRAY NOZZLES, REMOVING AND INSTALLING .

-- Disconnect the connector on the front airbag crash sensor, refer to DRIVER FRONT AIRBAG CRASH SENSOR -G283-, REMOVING AND INSTALLING .

-- Disconnect the connector -2-.

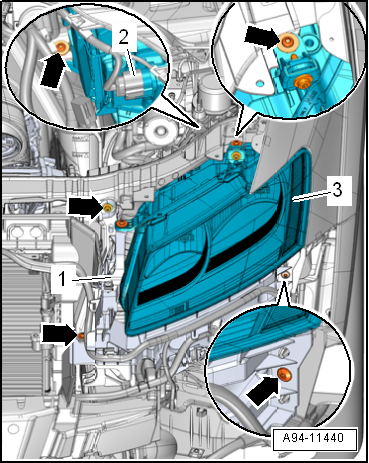

Fig 2: Removing Headlamp Housing - Part 2 (Vehicles From MY 2013)

Courtesy of AUDI OF AMERICA, LLC

-- Remove bolts -arrows- and remove the headlamp bracket -1- with the housing -3-.

-- If the headlamp housing is being replaced, then the mount on the bracket must be removed, refer to HEADLAMP HOUSING MOUNT, REMOVING AND INSTALLING .
