Headlamp, Changing From LHD To RHD, Halogen Headlamps Through My 2012: Procedure

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

The cover film has a marking foil, which must be placed along the line around the headlamp lens so that it covers the asymmetrical area of the low beam.

-- Clean the headlamp lenses. They must be clean and dry.

Headlamp Driver's Side:

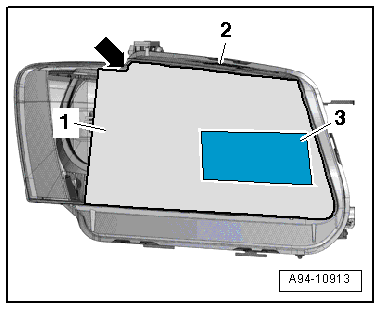

Fig 1: Positioning Marking Film Around Headlamp Lens (Driver's Side)

Courtesy of AUDI OF AMERICA, LLC

-- Peel off the protective film from the marking film.

-- Position marking film -1- so that it is flush with line -2- around the headlamp lens and the indent -arrow-.

-- Separate the marking film from cover film -3- at the perforation and pull it off of the headlamp lens.

Headlamp Passenger's Side:

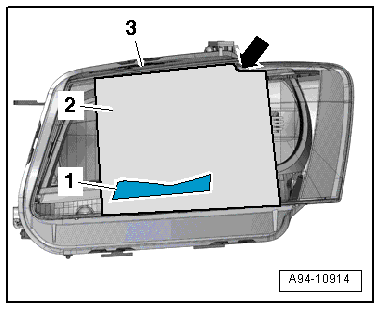

Fig 2: Positioning Marking Film Around Headlamp Lens (Passenger's Side)

Courtesy of AUDI OF AMERICA, LLC

-- Peel off the protective film from the marking film.

-- Position marking film -2- so that it is flush with line -3- around the headlamp glass and the indent -arrow-.

-- Separate the marking film from the protective backing -1- at the perforation and pull it off of the headlamp lens.
