Headlamp Housing Inner Bracket, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Locating/Removing Expanding Clips At Lock Carrier Cover

Courtesy of AUDI OF AMERICA, LLC

-- To remove the expanding clips -arrows-, carefully push the pin -1- to dimension -x- until it audibly engages into the expanding clip -arrow A-.

Dimension -x- = 5 mm.

-- Remove the unlocked expanding clip -2- and the pin.

-- Lift the lock carrier cover -3- and engage it on the radiator grille.

-- Remove the bolts -arrows-.

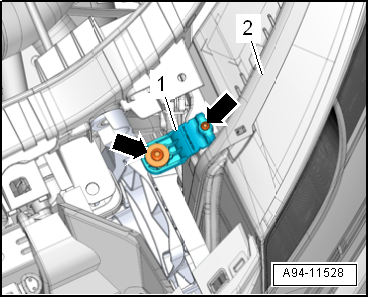

Fig 2: Removing Headlamp Housing Bracket

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bracket -1- upward from the headlamp housing -2-.
