Left/Right Daytime Running Lamp And Position Lamp Led Module -L176- / -L177-, Removing And Installing, Hid Headlamps Through My 2012: Removing

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.

-- Turn the light switch to position "0".

-- Turn off the ignition and all electrical consumers and remove the ignition key.

-- Do not touch the flasher.

-- On the right: remove the air filter housing, refer to AIR FILTER HOUSING, REMOVING AND INSTALLING .

-- Open the retainer -2- -arrow-.

Fig 1: DRL Control Unit Headlight Access Cover

Courtesy of AUDI OF AMERICA, LLC

-- Move the housing cover -1- to the side and remove it.

-- Take out bolts -2- and -4- and remove the LED module -3- from the mount.

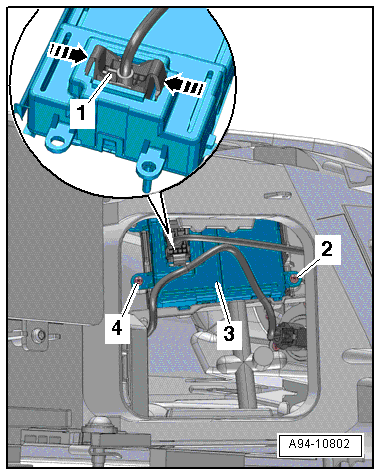

Fig 2: DRL Control Unit Location Inside Headlight

Courtesy of AUDI OF AMERICA, LLC

-- Squeeze the clips -arrows- and disconnect the LED module connector -1-.
