Left/Right Daytime Running Lamp And Position Lamp Led Module -L176- / -L177-, Removing And Installing, Hid Headlamps From My 2013: Removing

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Removing Expanding Clips At Lock Carrier Cover

Courtesy of AUDI OF AMERICA, LLC

-- Turn the light switch to position "0".

-- Turn off the ignition and all electrical consumers and remove the ignition key.

-- Do not touch the flasher.

-- To remove the expanding clips -arrows-, carefully push the pin -1- to dimension -x- until it audibly engages into the expanding clip -arrow A-.

Dimension -x- = 5 mm.

-- Remove the unlocked expanding clip -2- and the pin.

-- Lift the lock carrier cover -3- and engage it on the radiator grille.

-- On the right: remove the air filter housing, refer to AIR FILTER HOUSING, REMOVING AND INSTALLING .

-- Remove bolts -2- and -4-.

Fig 2: Pushing Headlamp Housing Forward

Courtesy of AUDI OF AMERICA, LLC

-- Loosen the bolt -3- three turns.

-- Push the headlamp housing -1- forward all the way in direction of -arrow-.

NOTE:

If the headlamp housing cannot be pushed all the way forward, then the connector must be disconnected.

-- Remove the bolts -arrows-.

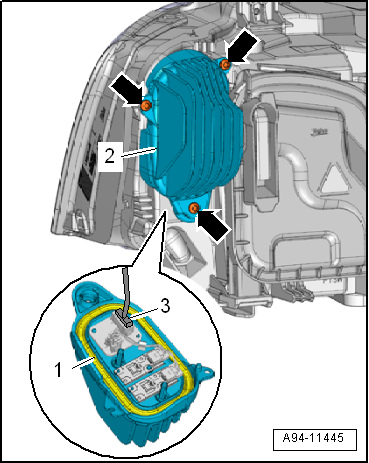

Fig 3: Removing LED Module From Headlamp Housing

Courtesy of AUDI OF AMERICA, LLC

-- Remove the LED module -2- from the headlamp housing.

-- Disconnect the connector -3-.

NOTE:

If the bolts cannot be removed as described, then the front wheel housing liner must be removed, refer to OVERVIEW - FRONT WHEEL HOUSING LINER .
