Charge Air Cooling Pump -V188-, REMOVING AND INSTALLING, VEHICLES WITHOUT LEFT RADIATOR FOR CHARGE AIR COOLING CIRCUIT: Removing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Front Wheel Housing Liner

Courtesy of AUDI OF AMERICA, LLC

-- Remove the left front wheel.

-- Remove the left front wheel housing liner -1-, refer to OVERVIEW - FRONT WHEEL HOUSING LINER .

-- Disconnect the connector -4-.

-- Clamp the coolant hoses on the Charge Air Cooling Pump -V188- with the Hose Clamps - Up To 25 mm 3094.

-- Loosen the clamp -2- to remove the coolant hoses.

-- Remove the nuts -3- and bolt -5- and remove the Charge Air Cooling Pump -V188- with the bracket.

-- When the Charge Air Cooling Pump -V188- should be removed from the bracket remove the nut -1-.

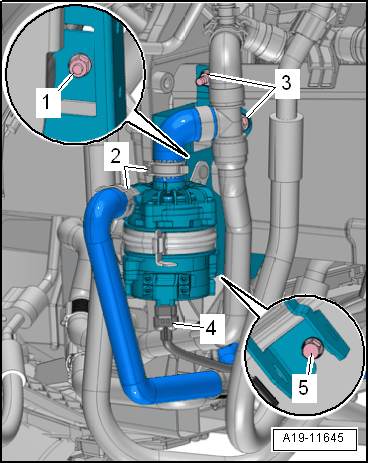

Fig 2: Identifying Charge Air Cooling Pump -V188- Bracket Mounting Bolts

Courtesy of AUDI OF AMERICA, LLC
