Charge Air Cooling Pump -V188-, REMOVING AND INSTALLING, VEHICLES WITH LEFT RADIATOR FOR CHARGE AIR COOLING CIRCUIT: Removing
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the left charge air cooling circuit radiator with the Charge Air Cooling Pump -V188-, refer to LEFT CHARGE AIR COOLING CIRCUIT RADIATOR, REMOVING AND INSTALLING .

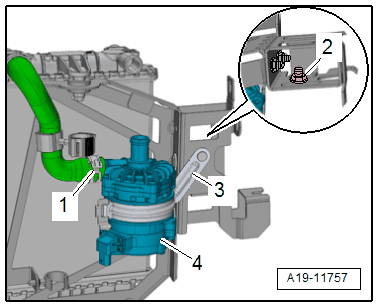

-- Loosen the clamp -1- and remove the coolant hose.
-- Remove the nut -2- and the retaining bracket -3-.
-- Remove the Charge Air Cooling Pump -V188- item -4-.
