Overview - Cylinder Head: Notes

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

The cylinder head for cylinder bank 2 (left) is shown in the illustration.

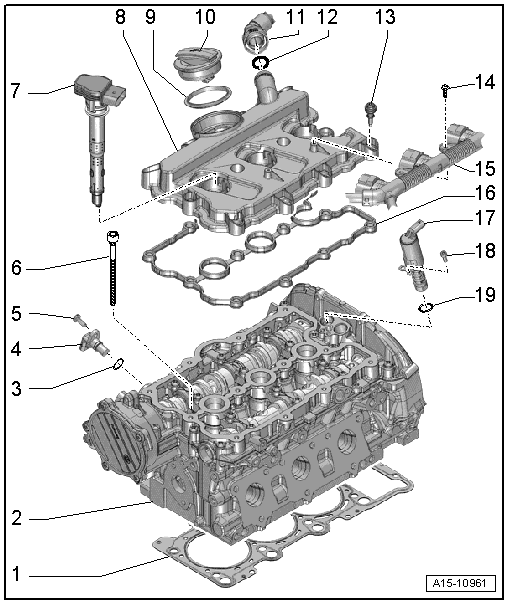

Fig 1: Overview Of Left Cylinder Head And Valve Cover

Courtesy of AUDI OF AMERICA, LLC

Cylinder Head Gasket
- Replacing, refer to CYLINDER HEAD, REMOVING AND INSTALLING .
- Installed position: the part number faces the cylinder head
- Change the coolant and engine oil after replacing
Cylinder Head
- Removing and installing, refer to CYLINDER HEAD, REMOVING AND INSTALLING .
- Check for distortion, refer to Figure
- Reworking dimension, refer to Figure
- Change the coolant and engine oil after replacing
O-Ring
- Replace
Camshaft Position Sensor
- Cylinder bank 1 (right) Camshaft Position Sensor -G40-
- Cylinder bank 2 (left) Camshaft Position Sensor 2 -G163-
Bolt
- Tightening specification, refer to OVERVIEW - IGNITION SYSTEM .
Bolt
- Tightening specification and sequence. Refer to Cylinder Head, Tightening Sequence
- Always replace
- As a running change, the polydrive bolt heads were replaced with internal multi-point bolts.
- Follow the sequence when loosening. Refer to CYLINDER HEAD COVER, REMOVING AND INSTALLING
Ignition Coil
- Removing and installing, refer to IGNITION COILS, REMOVING AND INSTALLING .
Cylinder Head Cover
- Removing and installing, refer to LEFT CYLINDER HEAD COVER, REMOVING AND INSTALLING for left side, refer to RIGHT CYLINDER HEAD COVER, REMOVING AND INSTALLING for right side.
Seal
- Replace if damaged or leaking
Cap
Hose
- For the crankcase ventilation
- Removing and installing, refer to CRANKCASE VENTILATION HOSES, REMOVING AND INSTALLING .
O-Ring
- Always Replace
Bolt
- Tightening specification and sequence: left cylinder head cover, refer to Fig 2, right cylinder head cover, refer to Fig 3
- Always replace if the seal is damaged
Bolt
- Tightening specification, refer to OVERVIEW - IGNITION SYSTEM .
Connector Strip
- For the ignition coils
Seal
- For the cylinder head cover
- Replace if damaged or leaking
Camshaft Adjustment Solenoid Valve
- Cylinder bank 1 (right) Camshaft Adjustment Valve 1 -N205-
- Cylinder bank 2 (left) Camshaft Adjustment Valve 2 -N208-
Bolt
- 5 Nm
O-Ring
- Always Replace

Fig 2: Left Cylinder Head Cover Bolts Tightening Sequence (Reverse For Loosening)

Courtesy of AUDI OF AMERICA, LLC

-- Tighten the bolts to 9 Nm in the following sequence: -1 to 12-.

Fig 3: Right Cylinder Head Cover Bolts Tightening Sequence (Reverse For Loosening)

Courtesy of AUDI OF AMERICA, LLC

-- Tighten the bolts to 9 Nm in the following sequence: -1 to 12-.
