Cylinder Head, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.

The engine is installed.

NOTE:

The following information describes how to remove both cylinder heads at the same time.

If only one cylinder head will be removed, follow the applicable instructions in the following description.

When installing, bring all cable ties back to same positions.

WARNING:

There is a risk of injury because the fuel is under very high pressure.

Reduce the fuel pressure down to residual pressure before opening high pressure area of the fuel injection system.

-- Reduce the fuel pressure in the high pressure area, refer to FUEL SUPPLY SYSTEM SAFETY PRECAUTIONS => Releasing Pressure in High Pressure Area .

-- Remove the upper coolant pipe, refer to UPPER COOLANT PIPE, REMOVING AND INSTALLING .

-- Remove the oil filter housing, refer to OIL FILTER HOUSING, REMOVING AND INSTALLING .

-- Remove the intake manifold lower section, refer to INTAKE MANIFOLD LOWER SECTION WITH FUEL RAIL, REMOVING AND INSTALLING .

Fig 1: Lower Section Of Intake Manifold With Fuel Rail

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connectors on the fuel injectors.

-- Remove the affected camshaft timing chain from camshafts, refer to CAMSHAFT TIMING CHAIN, REMOVING FROM CAMSHAFTS .

Fig 2: Left Cylinder Head Chain Tensioner and Locking Pin T40071

Courtesy of AUDI OF AMERICA, LLC

-- Remove the Locking Pin T40071 from the left cylinder head.

-- Remove the bolts -1- and -2- and then remove the chain tensioner on the right cylinder head.

Fig 3: Right Cylinder Head Chain Tensioner and Locking Pin T40071

Courtesy of AUDI OF AMERICA, LLC

NOTE:

The Locking Pin T40071 remains inserted.

NOTE:

Ignore item -2- and -arrows-.

-- Disconnect the connectors from the left cylinder head.

Fig 4: CMP Sensor And Exhaust Camshaft Control Valve Cylinder Bank 2 (Left)

Courtesy of AUDI OF AMERICA, LLC

1 - for Camshaft Position Sensor 2 -G163-

3 - for Camshaft Adjustment Valve 2 -N208-

-- Move the electrical wiring harness to the side.

-- Disconnect the connector -1- for the Engine Coolant Temperature Sensor - G62-.

-- Remove the front coolant pipe bolts -arrows-.

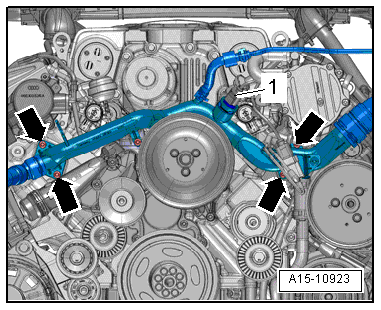

Fig 5: Identifying Front Coolant Pipe Bolts -Arrows-

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Ignore the -arrows-.

CAUTION:

There is a risk of contamination.

Follow the guidelines for cleanliness when working on the fuel supply system, refer to CLEAN WORKING CONDITIONS .

-- Press the release buttons and disconnect the fuel hose -1-.

-- Seal the open lines and connections with clean plugs from the Engine Bung Set VAS6122.

Fig 6: Identifying Version 2 Cylinder Bank 1 (Right)

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Ignore item -1-.

-- Disconnect the connectors -2- and -3-.

Fig 7: Identifying Fuel Supply Line

Courtesy of AUDI OF AMERICA, LLC

-- Remove left and right bolt -1- for the ground cable.

Fig 8: Locating Ground Cable At Cylinder Head (Both Sides Similar)

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Ignore item -2-.

-- Disconnect the connectors from the right cylinder head.

Fig 9: Camshaft Position Sensor And Exhaust Camshaft Control Valve Cylinder Bank 1 (Right)

Courtesy of AUDI OF AMERICA, LLC

Camshaft Adjustment Valve 1 -N205-
Camshaft Position Sensor -G40-

-- Move the electrical wiring harness to the side.

NOTE:

Ignore the -arrows-.

-- Remove the screw -arrow- and remove the oil dipstick and guide tube.

Fig 10: Identifying Oil Dipstick Guide Tube Bolt

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Ignore the -arrows-.

-- Open the clamp -1- and remove the vacuum hose from the vacuum pump.

Fig 11: Identifying Vacuum Pump

Courtesy of AUDI OF AMERICA, LLC

Only for the Right Cylinder Head

-- Remove the upper coolant pipe, refer to UPPER COOLANT PIPE, REMOVING AND INSTALLING .

Continuation for All

Fig 12: Identifying Bolts At Rear Of Cylinder Head

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows- on the rear of the cylinder head.

Left cylinder head: 3 bolts.
Right cylinder head: 4 bolts.

NOTE:

Different camshafts may be installed depending on the date of manufacture

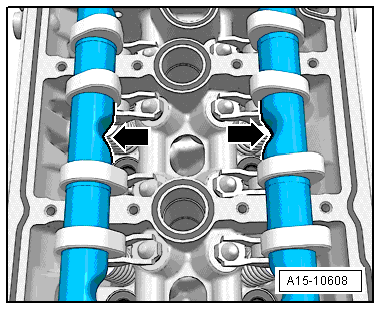

Fig 13: Camshaft Recesses

Courtesy of AUDI OF AMERICA, LLC

Camshafts with wrench clearance have notches -arrows- ; the cylinder head bolts can be removed without further preliminary work.

Camshafts without notches must be removed (refer to CAMSHAFT, REMOVING AND INSTALLING ) before the cylinder head bolts can be removed.

-- Loosen the cylinder head bolts in the sequence -1 to 8- .

-- Remove the bolts, remove the cylinder head and place it on a soft surface (foam).
