Overview - Rear Wheel Housing Liner
WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.

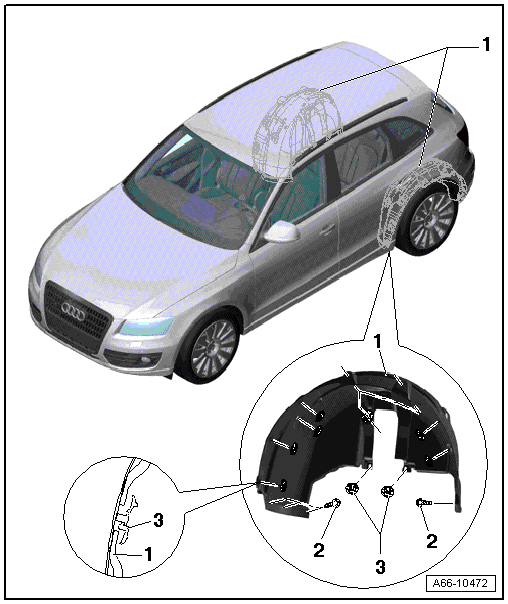

- Rear Wheel Housing Liner
- Removing:
-- The rear wheel is removed.
-- Remove the outer bolts.
-- Remove the clips from the retaining pins.
-- Remove wheel housing liner downward.
- Install in reverse order of removal.
- Removing:
- Bolts
- 2 Nm
- Clip
- Quantity: 7NOTE:
Replace the clips after removing the wheel housing liner.
- Quantity: 7
