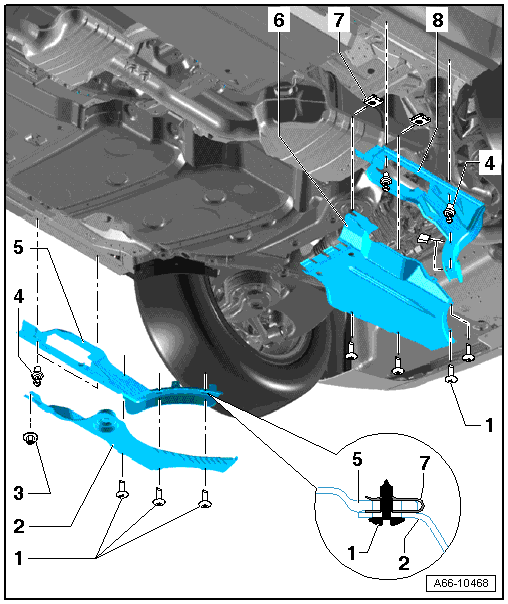

Rear Underbody Panels
WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.
- Bolt
- 2 Nm
- Right Rear Aerodynamic Trim Panel
- Slide under the right aerodynamic trim panel when installing.
- Nut
- 2 Nm
- Clip
- 3 Nm
- Rear Right Longitudinal Member Trim
- Aerodynamic Trim Left Rear
- Spring Nut
- Rear Left Longitudinal Member Trim
