Rear Side Airbag With Igniter, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
- Follow all Safety Precautions when working with pyrotechnic components. Refer to PYROTECHNIC COMPONENTS SAFETY PRECAUTIONS .
- Follow the additional safety precautions when working with the side airbag. Refer to SIDE AIRBAG ADDITIONAL SAFETY PRECAUTIONS .
- Follow all regulations when disposing of pyrotechnic components. Refer to AIRBAG, BELT TENSIONER AND BATTERY CUT-OUT UNITS, STORING, TRANSPORTING AND DISPOSING .
-- Remove the rear sill trim. Refer to SILL PANEL, REMOVING AND INSTALLING, REAR SILL PANEL .

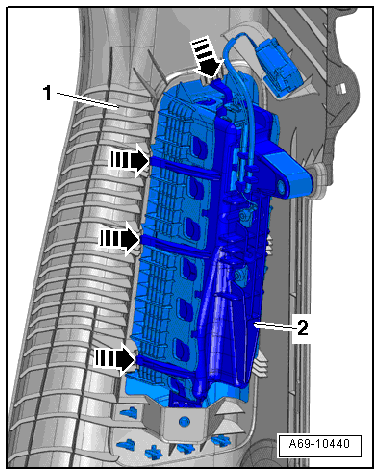

-- Press the retaining tabs for the side airbag -arrows- and at the same time remove the side airbag -2- from the sill panel -1-.
