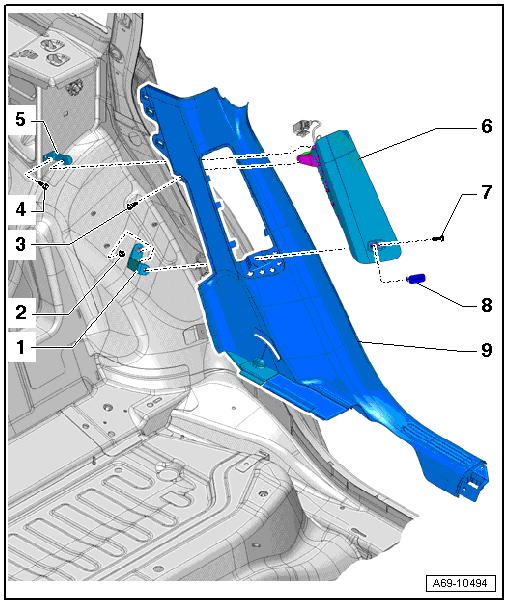

Overview - Rear Side Airbag
WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.
- Lower Bracket
- For side airbag
- Removing and installing. Refer to LOWER BRACKET FOR THE REAR SIDE AIRBAG, REMOVING AND INSTALLING .
- Nut
- 4.5 Nm
- Quantity: 2
- Bolt
- 4.5 Nm
- Bolt
- 4.5 Nm
- Upper Bracket
- for side airbag
- Removing and installing. Refer to UPPER BRACKET FOR THE REAR SIDE AIRBAG, REMOVING AND INSTALLING .
- Rear Side Airbag
- Equipment levels
- Driver side with Driver Side Rear Thorax Airbag Igniter -N201-
- Passenger side with Passenger Side Rear Thorax Airbag Igniter -N202-WARNING:
Follow all Safety Precautions when working with pyrotechnic components. Refer to PYROTECHNIC COMPONENTS SAFETY PRECAUTIONS .
- Removing and installing. Refer to REAR SIDE AIRBAG WITH IGNITER, REMOVING AND INSTALLING .
- Bolt
- 4.5 Nm
- Cap
- With the "Airbag" symbol
- Carefully unclip
- Attached permanently on the side airbag
- Rear Sill Panel Trim
- Removing and installing. Refer to SILL PANEL, REMOVING AND INSTALLING, REAR SILL PANEL .
