Overview - Front Side Airbag

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.

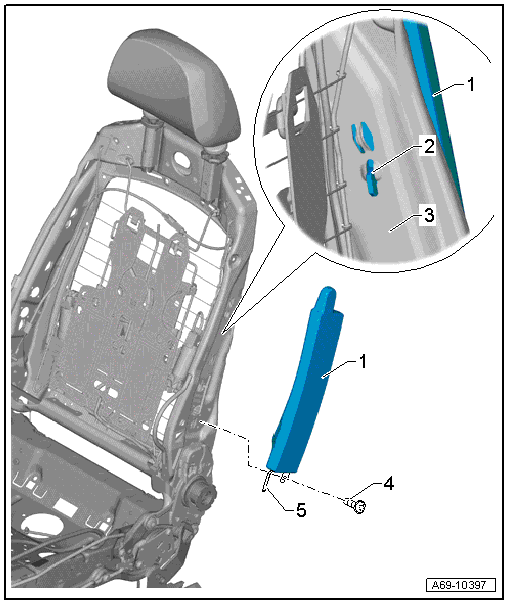

Fig 1: Overview OF Front Side Airbag

Courtesy of AUDI OF AMERICA, LLC

Front Side Airbag
- Driver side with the Driver Thorax Airbag Igniter -N199-
- Front passenger side with Front Passenger Thorax Airbag Igniter -N200-
  WARNING:
  Follow all Safety Precautions when working with pyrotechnic components. Refer to PYROTECHNIC COMPONENTS SAFETY PRECAUTIONS .
- Removing and installing. Refer to FRONT SIDE AIRBAG WITH IGNITER, REMOVING AND INSTALLING .
- installed from the top into the cloth pocket on the backrest cover (pocket not shown)
- Pocket sewn with cover
Hook
- For securing the side airbag to the backrest frame
Backrest Frame
Bolt
- 10 Nm
- Always replace if removed
- Clean the threaded hole with a thread tap.
Wiring Harness
- Front Driver Thorax Airbag Igniter -N199- or Front Passenger Thorax Airbag Igniter -N200- continuous to the connector station.
