Outer Rear Three-Point Seat Belt, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the rear outer belt anchor. Refer to REAR OUTER BELT END FITTING, REMOVING AND INSTALLING .

-- Remove the luggage compartment side trim. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING .

-- Remove the noise insulation for the automatic belt retractor.

Versions with rear seat belt tensioner igniter:

WARNING:

Follow all Safety Precautions when working with pyrotechnic components. Refer to PYROTECHNIC COMPONENTS SAFETY PRECAUTIONS .
Follow all regulations when disposing of pyrotechnic components. Refer to AIRBAG, BELT TENSIONER AND BATTERY CUT-OUT UNITS, STORING, TRANSPORTING AND DISPOSING .

-- Turn on the ignition.

-- Disconnect the battery ground cable with the ignition turned on. Refer to GROUND CABLE WITH BATTERY MONITORING CONTROL MODULE -J367-, REMOVING AND INSTALLING .

WARNING:

Before handling pyrotechnic components (for example, disconnecting the connector), the person handling it must "discharge static electricity". This can be done by touching the door striker, for example.

-- Disconnect the connector.

Fig 1: Releasing Connector Lock

Courtesy of AUDI OF AMERICA, LLC

-- To do this, release the connector lock -3- using a small screwdriver -1- and remove the electrical connector -2-.

Continuation for all vehicles:

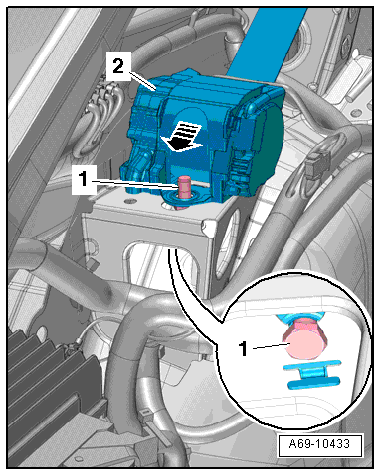

Fig 2: Three-Point Seat Belt, Removal

Courtesy of AUDI OF AMERICA, LLC

-- Loosen the bolt -1-.

-- Disengage and remove the automatic belt retractor -2- -arrow-.
