Outer Rear Belt Latch, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.

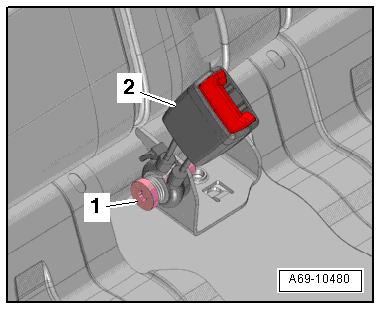

Fig 1: Identifying Rear Outer Seat Belt Latches
GWWA69-10480Courtesy of AUDI OF AMERICA, LLC

-- Remove the bench seat. Refer to SEAT BENCH/SINGLE SEAT, REMOVING AND INSTALLING .

-- Remove bolt -1- and remove belt latch -2-.
