Outer Rear Belt Latch, Removing And Installing: Installing
WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.
-- If parts of the seat belt system are removed due to an accident, replace the belt system mounting bolts.

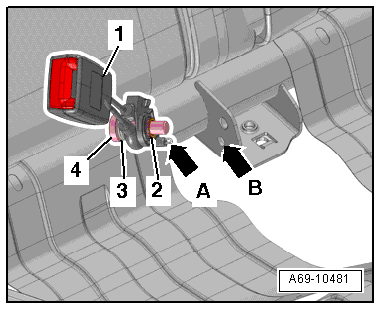

-- Connect the spring -3- to the belt latch -1-.
-- Install the bolt -4- into the spring and into the safety belt latch.
-- Slide the spring washer -2- over the bolt thread and turn it all the way until it stops.
Install in reverse order of removal. Note The Following:
-- If parts of the seat belt system are removed due to an accident, replace the belt system mounting bolts.
-- Mount the seat belt latch so that the pin -arrow A- fits into the hole -arrow B- on the seat frame.
