Outer Rear Belt Guide, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
- When removing and installing the belt guide, do not remove the bolts installed in the belt guide from below. They are set by the manufacturer.
- Replace the entire belt guide if damaged.
-- Remove the luggage compartment side trim. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING .
-- Remove the rear sill trim. Refer to SILL PANEL, REMOVING AND INSTALLING, REAR SILL PANEL .

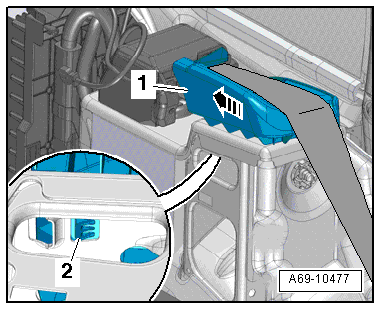

-- Push the belt guide retaining hook -2- upward and hold it there.
-- Slide the belt guide -1- back until the bolt heads -arrow- can be disengaged from the bracket on the body.
