Rear Outer Belt End Fitting, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the rear seat. Refer to REAR SEAT, REMOVING AND INSTALLING .
-- Remove the rear sill trim. Refer to SILL PANEL, REMOVING AND INSTALLING, REAR SILL PANEL .

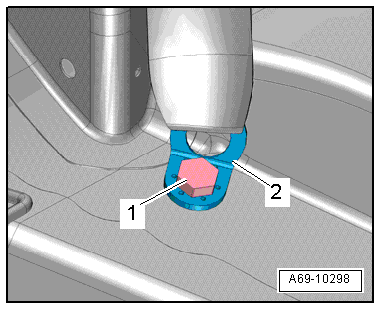

-- Remove the bolt -1- and remove the belt end fitting -2-.
