Overview - Rear Seat Belt Latch
WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.

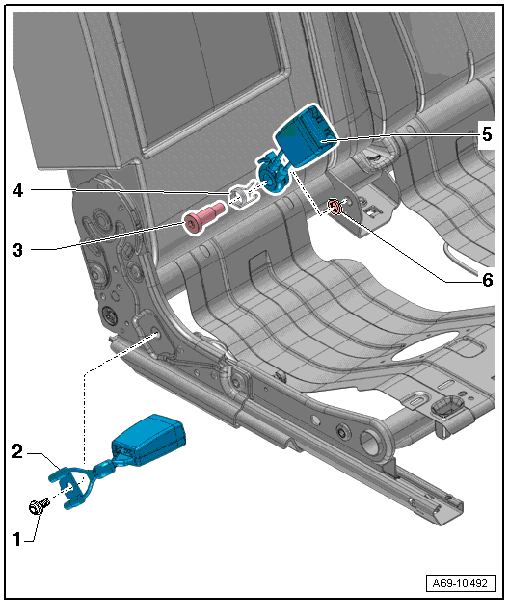

- Bolt
- 40 Nm
- If it was removed because of an accident, replace the bolt
- Seat Belt Latch
- Rear in the center
- Removing and installing. Refer to REAR SEAT BELT LATCH IN CENTER SEATING POSITION, REMOVING AND INSTALLING .
- Always replaced if the belt tensioner has deployed with the belt on
- Bolt
- 45 Nm
- If it was removed because of an accident, replace the bolt
- Spring
- Seat Belt Latch
- Rear outer
- Removing and installing. Refer to OUTER REAR BELT LATCH, REMOVING AND INSTALLING .
- Always replaced if the belt tensioner has deployed with the belt on
- Spring Washer
