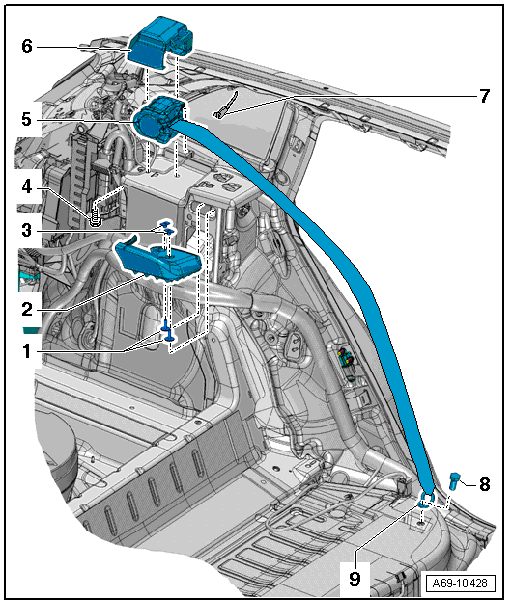

Overview - Rear Outer Three-Point Seat Belt
WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.
- Bolts
- Do not change the bolt position when removing and installing the belt guide. It is set by the manufacturer.
- Rear Outside Belt Guide
- Replace the entire belt guide if damaged.
- Removing and installing. Refer to OUTER REAR BELT GUIDE, REMOVING AND INSTALLING .
- Nut
- Bolt
- 45 Nm
- If it was removed because of an accident, replace the bolt
- Automatic Belt Retractor
- Market-specific: with Driver Side Rear Seat Belt Tensioner Igniter -N196-
- Market-specific: with Passenger Side Rear Seat Belt Tensioner Igniter -N197-
- Removing and installing. Refer to OUTER REAR THREE-POINT SEAT BELT, REMOVING AND INSTALLING .
- Noise Insulation
- For the automatic belt retractor
- Connector
- Market-specific for Driver Side Rear Seat Belt Tensioner Igniter -N196-
- Market-specific for Passenger Side Rear Seat Belt Tensioner Igniter -N197-
- Bolt
- 45 Nm
- If it was removed because of an accident, replace the bolt
- Outer Rear Belt End Fitting
- Removing and installing. Refer to REAR OUTER BELT END FITTING, REMOVING AND INSTALLING .
