Overview - Front Seat Belt Latch
WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.

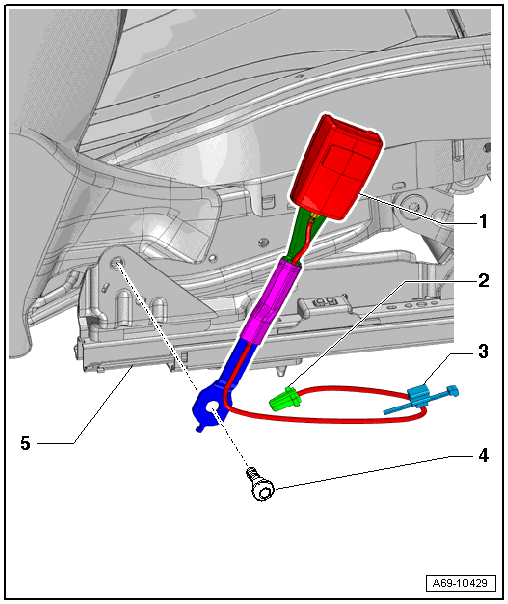

- Front Seat Belt Latch
- Driver side with Driver Seat Belt Switch -E24-
- Front passenger side: With Front Passenger Seat Belt Switch -E25- (depending on the country; belt latch version not illustrated)
- Removing and installing. Refer to FRONT SEAT BELT LATCH, REMOVING AND INSTALLING .
- Always replaced if the belt tensioner has deployed with the belt on
- Installed position, refer to INSTALLING - "Front Seat Belt Latch Installation Position " (See Figure)"
- Connector
- For the seat belt switch
- Wiring Bracket
- Bolt
- 34 Nm
- If it was removed because of an accident, replace the bolt
- Seat Frame
