Front Three-Point Seat Belt, Removing And Installing: Removing
- Follow all Safety Precautions when working with pyrotechnic components. Refer to PYROTECHNIC COMPONENTS SAFETY PRECAUTIONS .
- Follow all regulations when disposing of pyrotechnic components. Refer to AIRBAG, BELT TENSIONER AND BATTERY CUT-OUT UNITS, STORING, TRANSPORTING AND DISPOSING .
-- Turn on the ignition.
-- Disconnect the battery ground cable with the ignition turned on. Refer to GROUND CABLE WITH BATTERY MONITORING CONTROL MODULE -J367-, REMOVING AND INSTALLING .
-- Remove the upper B-pillar trim panel. Refer to B-PILLAR TRIM PANEL, REMOVING AND INSTALLING, UPPER B-PILLAR TRIM PANEL .
-- Remove the lower B-pillar trim panel. Refer to B-PILLAR TRIM PANEL, REMOVING AND INSTALLING, LOWER B-PILLAR TRIM PANEL .
-- Remove the front belt anchor. Refer to FRONT BELT END FITTING, REMOVING AND INSTALLING .
-- Thread the belt webbing out of the upper B-pillar trim.
Before handling belt tensioner units (for example, disconnecting electrical connector), the person handling it must "discharge static electricity". This can be done by touching the door striker, for example.

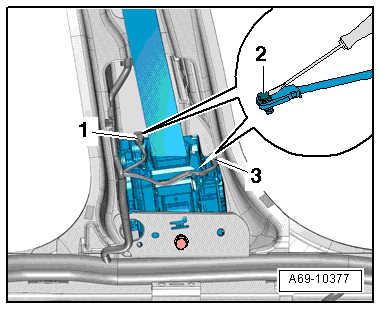

-- Releases the connector retainers -2- using a small screwdriver then disconnect the belt force limiter connector -item 1- and belt tensioner igniter 1 -item 3-.
-- Disconnect and free up the wire on the automatic belt retractor.
-- Remove the front belt guide -3-. Refer to FRONT SEAT BELT GUIDE, REMOVING AND INSTALLING .

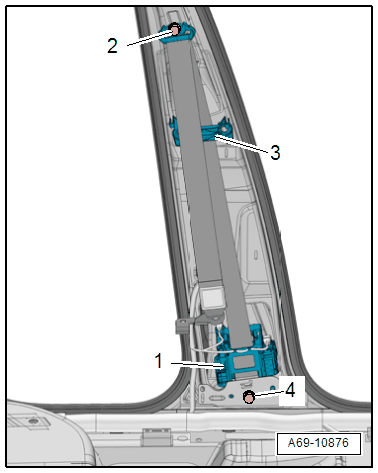

-- Remove the belt relay bolt -2-.
-- Remove the bolt -4- and the automatic belt retractor -1- from the mount.
