Front Seat Belt Latch, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.

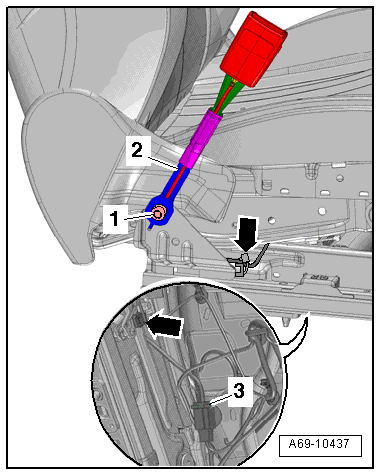

Fig 1: Removing/Installing Front Belt Latch

Courtesy of AUDI OF AMERICA, LLC

-- Remove the front seat. Refer to FRONT SEAT, REMOVING AND INSTALLING .

Passenger occupant detection system for deactivating the front passenger airbag (market-specific):

WARNING:

Replace the passenger occupant detection system seat belt latch each time the passenger belt tensioner deploys.

Continuation for all vehicles:

-- Disconnect the connector -3- and free up the wire -arrows-.

-- Remove bolt -1- and remove belt latch -2-.
