Front Belt End Fitting, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.
-- Move the front seat all the way forward.
-- Remove the lower B-pillar trim panel. Refer to B-PILLAR TRIM PANEL, REMOVING AND INSTALLING, LOWER B-PILLAR TRIM PANEL .

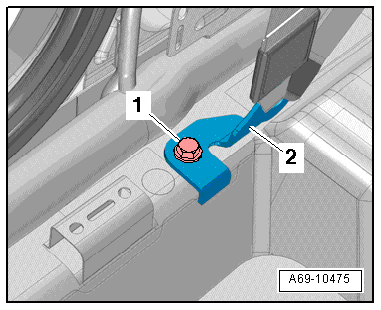

-- Remove the bolt -1- and remove the belt end fitting -2-.
